Chip data chip jun zheng T10

Single-core CPU 1.2 GHz

Memory Embedded in 16bitt @400Mhz DDRII; 512 m

Image sensor sensor type H42 1/4 "CMOS sensor

Number of pixels 1280 x 720 (1 million pixels)

Minimum illumination 0.01

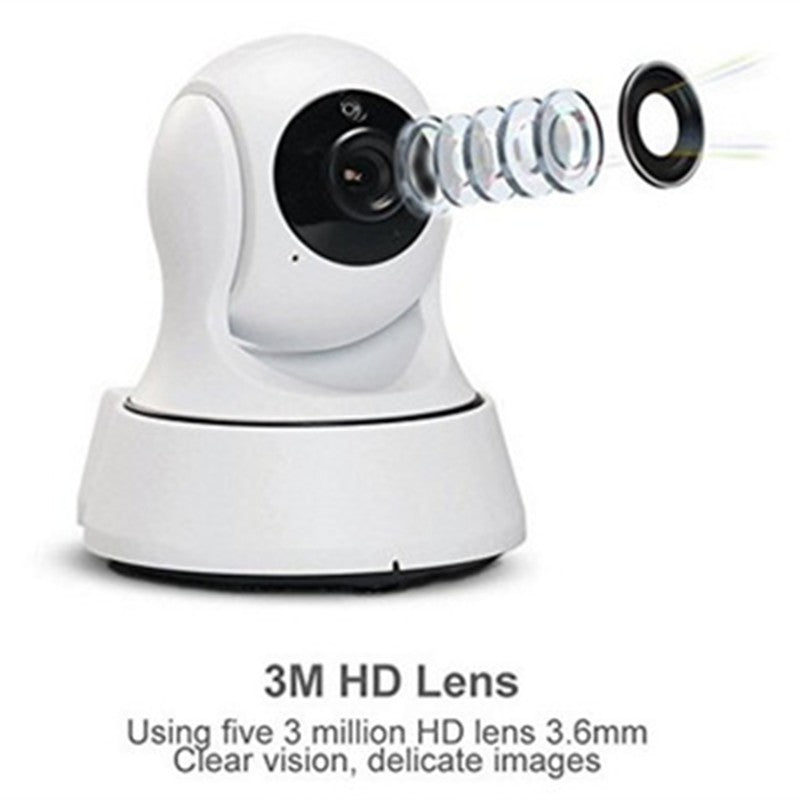

Fixed focal length of lens parameters: 3.6mm

Viewing Angle 60 °

Day and night function ir-cut dual filters automatically switch

Night vision is 10 meters

Connect network protocol HTTP,FTP,TCP/IP,UDP,SMTP

, DHCP, PPPoE DDNS, UPnP, RTSP

Cable network does not support, no network

WIFI (IEEE 802.11b/g/n)

Wireless connection smart connection

Onvif supports the standard onvif protocol, RTSP stream

P2P connection support

Feature video compressed format h.264, MJPEG

Resolution 720P, 640 x 480(VGA)

Video frame rate 25fps

Code stream

Mobile detection support

E-mail/FTP upload photo support

Watch support

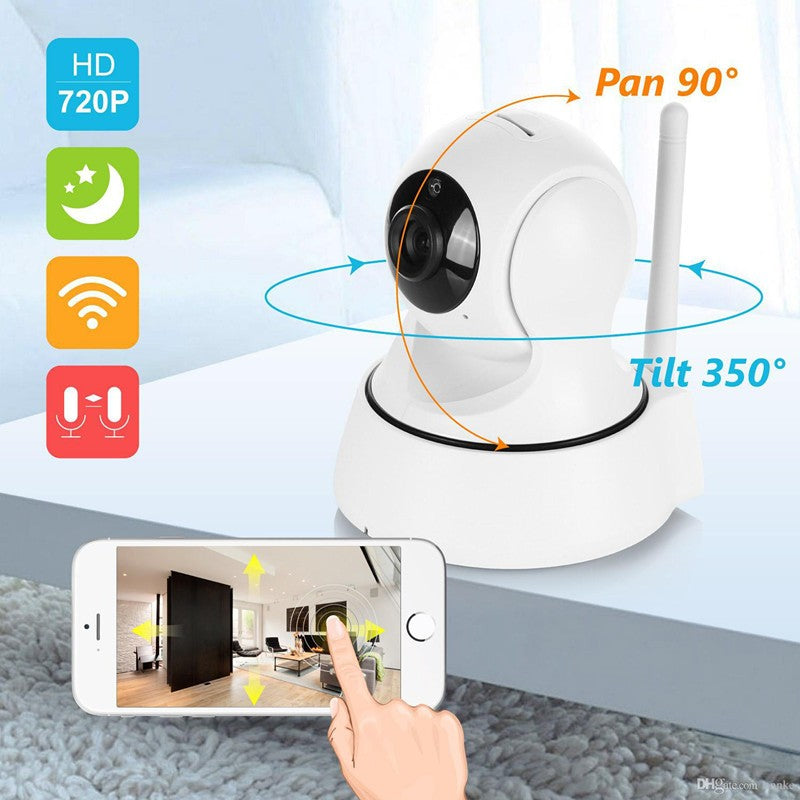

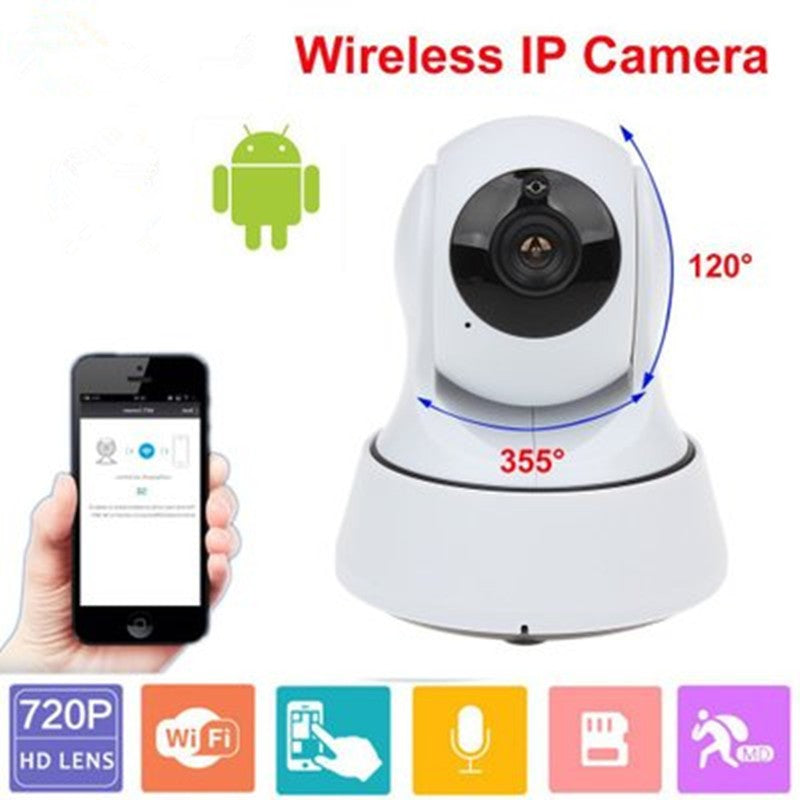

Yuntai around 355 °, 120 °

SD card video maximum 64GB

CJJSWLWX00001-White SD card video  :16G

The maximum number of presets is 8

Sound alarm support

Storage support TF card storage, Max support 64G; Supports PC and NVR storage

Voice built-in microphone support

Speech compression format adpcm

Built-in speaker support

Physical characteristics power supply specification DC5V/ 1.0a

Product specification 107*125*127mm

Package size 200x179x123mm

Working humidity of 20% ~ 85% (non-coagulation)

Working temperature - 10 ° ~ 60 ° C C
